The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.
Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
Can be customized for odd or even row spacing depending on the application of the attachment
Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing

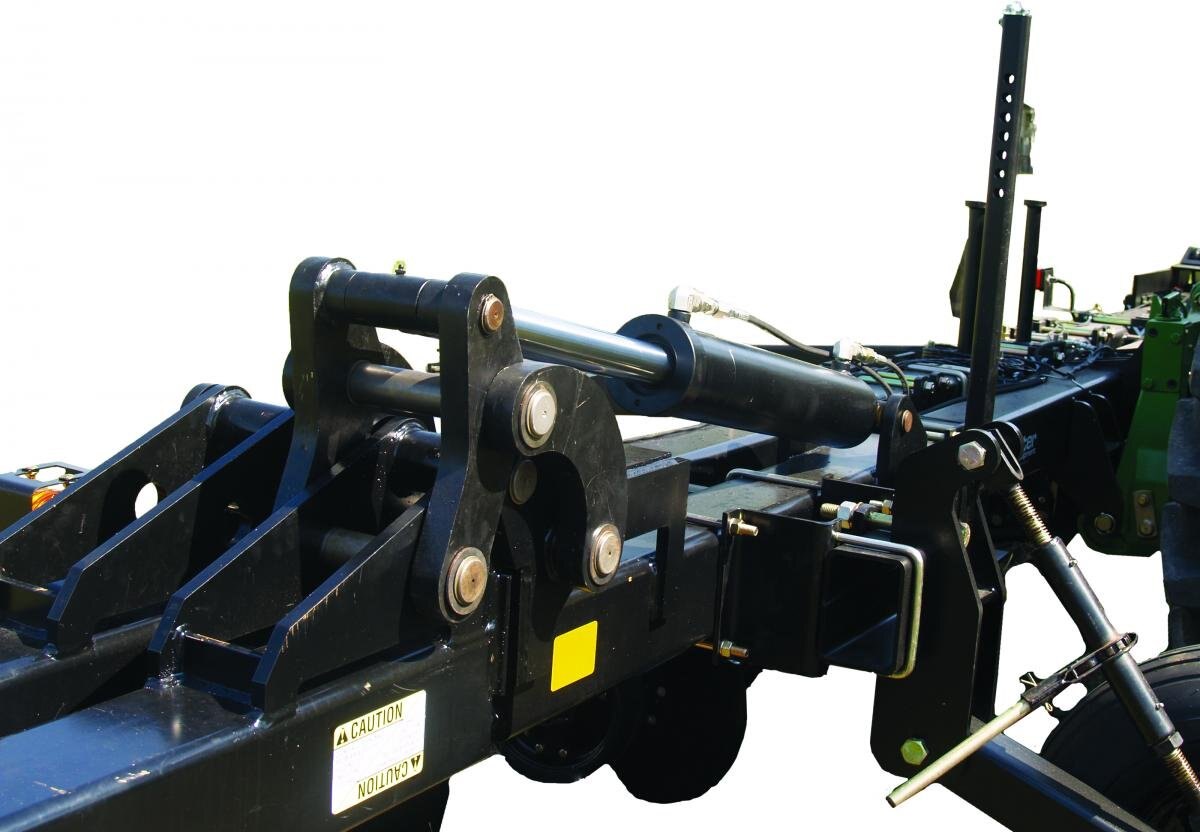

Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
Features 5" spacing between front and back bar
Fits category 3 and category 3N hitches
Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
