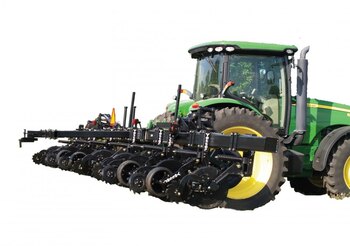

Yetter Double-Frame Hydraulic Locking Toolbar

Overview
Overview
The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.
 Features
  • Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
  • Can be customized for odd or even row spacing depending on the application of the attachment
  • Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
  • Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
  • Features 5" spacing between front and back bar
  • Fits category 3 and category 3N hitches
  • Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
  • Optional rear hitch
  • Includes parking stand
 Specs
  • Hydraulic cylinders: 5" x 24"
 Model Details
Model Actual Length Folded Width Weight
3831-101 31' Double-Frame Toolbar 30'7" 16' 3,000 lbs.
3841-101 41' Double-Frame Toolbar

41'5"

21' 3,550 lbs.
